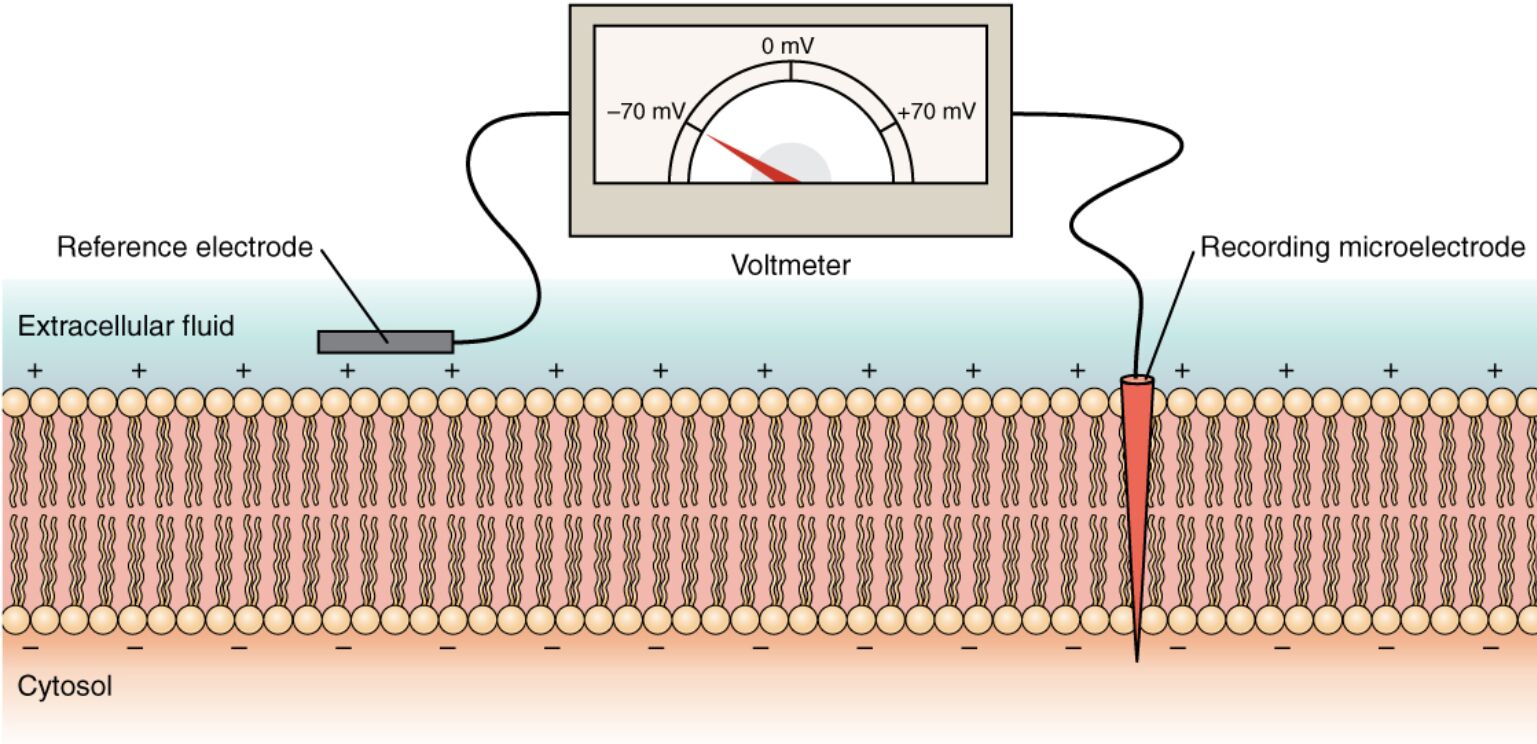

The electrical potential across a cell membrane, known as transmembrane voltage, is a fundamental aspect of cellular function, influencing processes like nerve signaling and muscle contraction. This diagram demonstrates how a recording electrode inside the cell and a reference electrode outside are used with a voltmeter to measure this charge difference, providing a conventional reading relative to the cytosol. Exploring this method offers valuable insights into how scientists and clinicians assess membrane potential and its role in physiological regulation.
Key Labels in the Membrane Charge Measurement Diagram
This section provides detailed explanations for each labeled component, clarifying their roles in measuring transmembrane voltage.
Recording electrode: This fine electrode is inserted into the cell’s cytosol, detecting the electrical potential inside the cell. It transmits this measurement to the voltmeter for analysis of the transmembrane voltage.
Recommended Study Resource
Gray's Anatomy: The Anatomical Basis of Clinical Practice
Enhance your anatomical knowledge with Gray's Anatomy: The Anatomical Basis of Clinical Practice. This authoritative text offers in-depth insights and illustrations, perfect for medical students and practitioners aiming for clinical excellence.
At AnatomyNote.com, we offer free resources on anatomy, pathology, and pediatric medicine for medical students and professionals. Purchasing through our Amazon links, like Gray's Anatomy, supports our server costs and content creation at no additional cost to you.
Disclosure: As an Amazon Associate, we earn a commission from qualifying purchases.
Disclosure: As an Amazon Associate, we earn a commission from qualifying purchases at no extra cost to you.
Reference electrode: Positioned outside the cell in the extracellular fluid, this electrode provides a baseline potential for comparison. It ensures accurate measurement by stabilizing the external reference point.
Voltmeter: This device compares the electrical potentials detected by the recording and reference electrodes, displaying the transmembrane voltage. It quantifies the difference in charge across the cell membrane.
Cytosol: The internal fluid of the cell where the recording electrode is placed, containing a negative charge relative to the outside. Its potential reflects the activity of ion channels and pumps.
Extracellular fluid: The fluid outside the cell where the reference electrode is located, typically maintaining a positive charge relative to the cytosol. It serves as the external environment for ion exchange.
