The Transmission Electron Microscope (TEM) represents the pinnacle of high-resolution imaging in the medical field, allowing scientists and pathologists to visualize biological structures at the nanometer scale. By utilizing a high-voltage beam of electrons instead of photons, this sophisticated instrument reveals the intricate internal architecture of cells, viruses, and tissues, playing a crucial role in accurate diagnosis and advanced biomedical research.
The Role of TEM in Modern Medicine

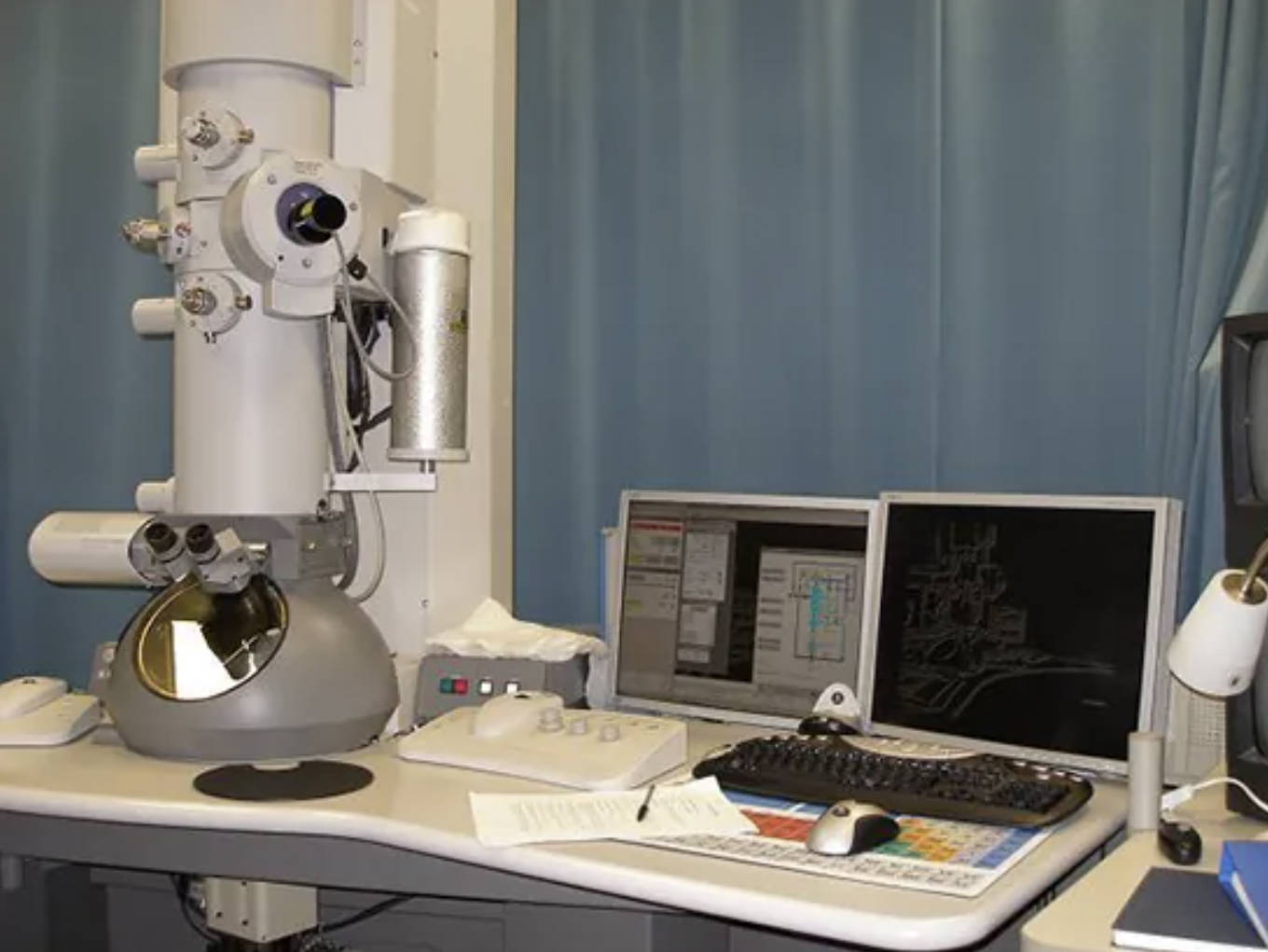

The image above depicts a standard Transmission Electron Microscope workstation in a laboratory setting. Unlike light microscopes, which use glass lenses to focus light, the TEM uses a large, vertical column—visible on the left side of the image—to house electromagnetic lenses. These lenses focus a beam of electrons that passes through a very thin specimen. The electrons interact with the sample, and the resulting image is projected onto a fluorescent screen or captured by a digital camera, displayed on the computer monitors seen on the right. This setup allows for magnification levels significantly higher than light microscopy, often exceeding 1,000,000x.
Because the wavelength of an electron is much shorter than that of visible light, the TEM offers superior resolution. This capability is essential for examining the “ultrastructure” of biological samples—the detailed architecture of cells that defines their function and health. In a hospital setting, this microscope is not used for routine screening but is reserved for difficult cases where checking the fine details of organelles or membranes is necessary for a definitive diagnosis.
Key features and requirements of Transmission Electron Microscopy include:
- Electron Beam Source: An electron gun at the top of the column generates the beam.
- Vacuum System: The entire column is kept under a high vacuum to prevent air molecules from scattering the electrons.
- Thin Sectioning: Specimens must be sliced incredibly thin (often less than 100 nanometers) using a diamond knife to allow electrons to pass through.
- Electromagnetic Lenses: These manipulate the electron path to focus and magnify the image.
Diagnostic Applications in Pathology
While molecular biology has advanced, the transmission electron microscope remains the gold standard for diagnosing specific conditions that rely on visual confirmation of structural abnormalities. One of the most common clinical applications is in renal (kidney) pathology. When a patient presents with kidney failure or proteinuria, a renal biopsy is often performed. Light microscopy can show general tissue damage, but TEM is required to visualize the glomerular basement membrane and the “foot processes” of podocytes. In diseases like Minimal Change Disease, these foot processes fuse together, a change invisible to standard microscopes but glaringly obvious under TEM. Similarly, in Alport syndrome, the basement membrane appears split and woven, a hallmark of the genetic disorder.
Analyzing Cellular Organelles and Muscles
Beyond kidney disease, TEM is vital for diagnosing neuromuscular disorders. In the evaluation of myopathies (muscle diseases), pathologists look for structural changes within the muscle fibers. For instance, mitochondrial myopathies are characterized by abnormalities in the shape, size, and internal structure of mitochondria—the cell’s power plants. Under the TEM, clinicians can see “paracrystalline inclusions” or abnormal cristae within the mitochondria, confirming a metabolic disorder.
The device also allows for the detailed inspection of other organelles, such as the endoplasmic reticulum and lysosomes. In lysosomal storage diseases, cells accumulate undigested waste products because of enzyme deficiencies. The TEM reveals these storage vacuoles filled with specific materials (like lipid droplets or glycogen), helping to categorize the specific type of storage disease affecting the patient.
Virology and Microbiological Identification
Before the advent of rapid PCR testing, electron microscopy was the primary method for identifying viruses, and it remains useful for discovering novel pathogens. Because viruses are significantly smaller than bacteria, they are invisible to light microscopy. The TEM allows researchers to visualize the morphology of a virus directly. For example, identifying a coronavirus by its crown-like spikes or a rotavirus by its wheel-like appearance is made possible through negative staining techniques in TEM. This visual confirmation is crucial during the early stages of an outbreak to understand the physical characteristics of a new pathogen.
Conclusion
The Transmission Electron Microscope remains an irreplaceable tool in the landscape of medical diagnostics and research. By providing a window into the sub-cellular world, it allows medical professionals to bridge the gap between gross anatomy and molecular function. Whether identifying the subtle membrane defects in kidney disease or revealing the architecture of a new virus, the ultrastructure data provided by this technology ensures precise diagnoses and drives the development of targeted therapies.
