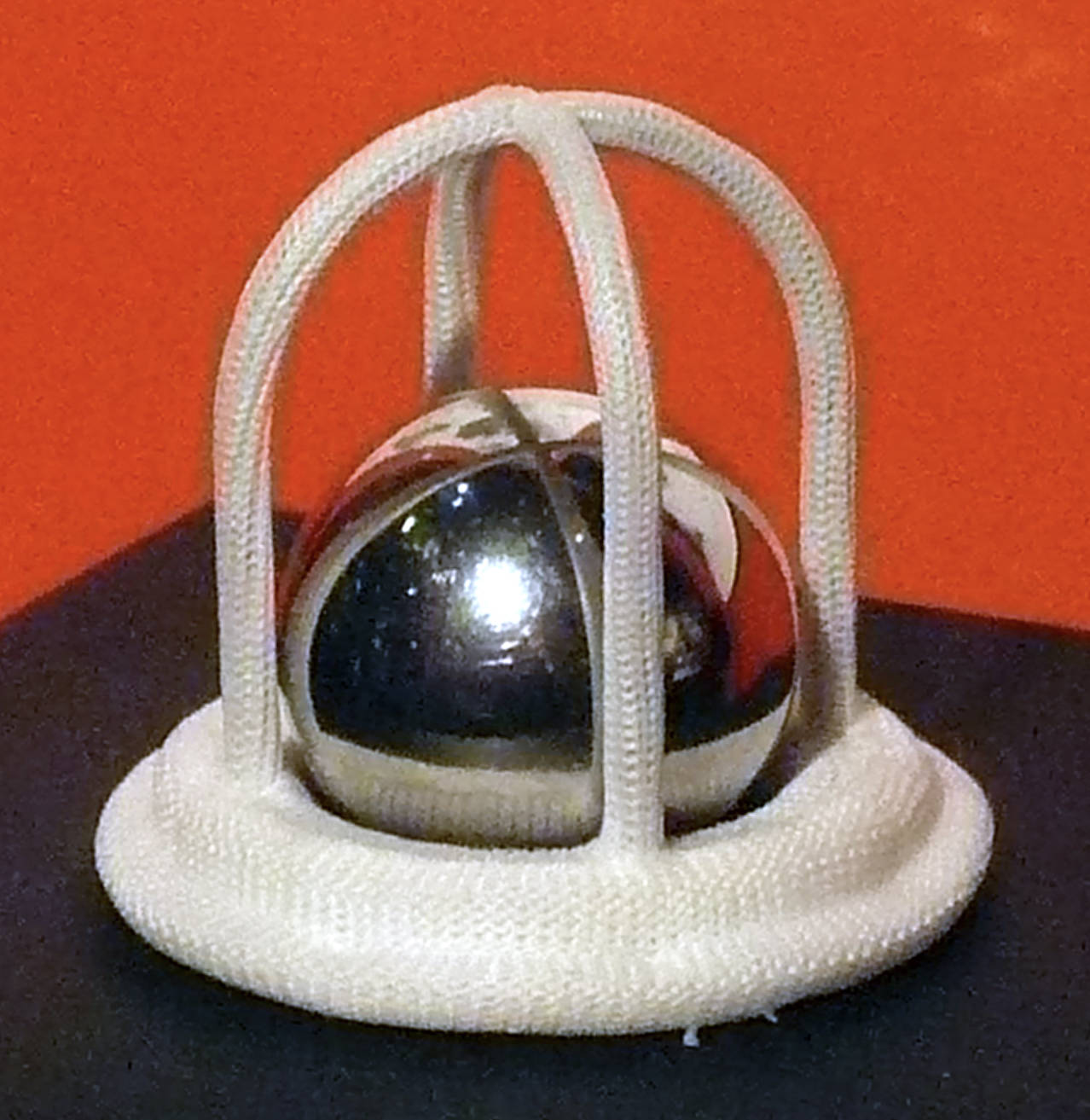

The Starr-Edwards caged ball valve represents a pioneering milestone in cardiovascular surgery as the first successfully implanted mechanical heart valve. Developed in 1960, this durable prosthetic device utilizes a simple yet effective ball-and-cage design to regulate blood flow, offering a life-saving solution for patients suffering from severe valvular heart disease. Its robust engineering paved the way for modern cardiac valve replacement therapy, saving countless lives over decades of clinical use.
Metal Cage: This structure consists of three or four metal struts, typically made of a cobalt-chromium alloy called Stellite, which form a protective dome over the valve opening. The cage serves as a physical barrier to contain the ball, preventing it from dislodging while allowing it enough vertical movement to open the valve for blood flow.
Ball (Poppet): The central spherical component is often made of Silastic (silicone rubber) or a hollow metal alloy in later models. This poppet moves freely within the cage, lifting to allow blood to pass during the heart’s pumping phase and seating firmly against the ring to prevent backflow when the heart relaxes.
Sewing Ring: Located at the base of the device, this fabric-covered ring is typically comprised of Dacron or Teflon mesh. It provides a stable, suturable margin that allows the cardiac surgeon to firmly anchor the prosthetic valve to the patient’s native heart tissue, ensuring a tight seal to prevent perivalvular leaks.
The Engineering Behind the First Mechanical Valve
The Starr-Edwards valve is an icon of medical innovation, resulting from the collaboration between surgeon Dr. Albert Starr and engineer Lowell Edwards. Before its invention, patients with severe valve damage had few survival options. The design is elegantly simple: it operates on a passive system driven entirely by the pressure gradients within the heart. When pressure in the heart chamber builds, the ball is pushed forward into the cage, creating a pathway for blood to flow around it. When pressure drops, the ball falls back into the seat, effectively sealing the orifice.
Despite the development of newer, more aerodynamic designs like the tilting disc and bileaflet valves, the Starr-Edwards valve is legendary for its mechanical reliability. There are documented cases of these valves functioning flawlessly in patients for over 40 years. However, the design does have hemodynamic limitations; the central ball forces blood to flow around the sides rather than through the center, which can create turbulence. This turbulence, along with the interaction between blood and the artificial materials, necessitates strict medical management to prevent complications.
To ensure the safety and efficacy of this device, several key factors are considered during implantation:
- Hemodynamics: The flow of blood must be sufficient to maintain cardiac output without causing damage to blood cells (hemolysis).
- Material Biocompatibility: The materials used must be inert to prevent immune rejection or severe inflammatory reactions.
- Auditory Feedback: Patients with this valve often hear a distinct clicking sound, providing audible confirmation of the valve’s mechanical function.
Clinical Indications: Valvular Heart Disease
The primary reason for implanting a mechanical prosthesis like the Starr-Edwards valve is end-stage valvular heart disease. This condition occurs when one of the heart’s four valves—most commonly the aortic or mitral valve—fails to function correctly. This failure typically manifests in two ways: stenosis or regurgitation. In aortic stenosis, the valve opening becomes narrowed and calcified, restricting blood flow from the left ventricle to the aorta. This forces the heart to work harder, leading to ventricular hypertrophy (thickening of the muscle) and eventual heart failure.
In cases of regurgitation, the valve leaflets fail to close completely, allowing blood to leak backward into the heart chamber. For example, in mitral regurgitation, blood flows back into the left atrium during contraction. This inefficient pumping mechanism causes fluid to back up into the lungs, leading to pulmonary edema and shortness of breath. When valve repair is impossible due to the extent of the damage—often caused by rheumatic fever, endocarditis, or age-related calcification—total valve replacement is the necessary intervention.
Physiology of Recovery and Anticoagulation
While the Starr-Edwards valve provides a durable structural fix, it introduces a physiological challenge: the risk of thrombosis (blood clot formation). The artificial surfaces of the cage and ball are not lined with endothelium like natural blood vessels. Consequently, the body’s clotting system can be activated when blood contacts the metal and silicone components. If a clot forms on the valve, it can obstruct the movement of the ball or break loose to cause an embolism (stroke).
Therefore, lifelong anticoagulation therapy is mandatory for any patient receiving a mechanical heart valve. The standard treatment involves the anticoagulant drug warfarin (Coumadin). Patients must undergo regular blood testing to monitor their International Normalized Ratio (INR), ensuring their blood is thin enough to prevent clots but not so thin as to cause spontaneous bleeding. This lifelong commitment to medication is the primary trade-off for the exceptional durability that mechanical valves offer compared to biological tissue valves, which wear out over time but generally do not require long-term blood thinners.
Conclusion
The Starr-Edwards caged ball valve stands as a testament to the ingenuity of 20th-century medicine, bridging the gap between fatal heart disease and long-term survival. While modern medicine has largely transitioned to lower-profile bileaflet valves for better hemodynamics, the Starr-Edwards design remains the gold standard for durability benchmarks. Its creation fundamentally changed cardiology, proving that the human heart’s mechanical functions could be successfully replicated by engineered devices.
