Darkfield microscopy is a specialized optical imaging technique designed to enhance the contrast in unstained, transparent specimens that are difficult to visualize under standard brightfield illumination. By utilizing a unique lighting method that blocks central light rays, this system produces an image where the specimen appears brightly illuminated against a contrasting dark background, allowing for the detailed observation of live biological samples and delicate structures.

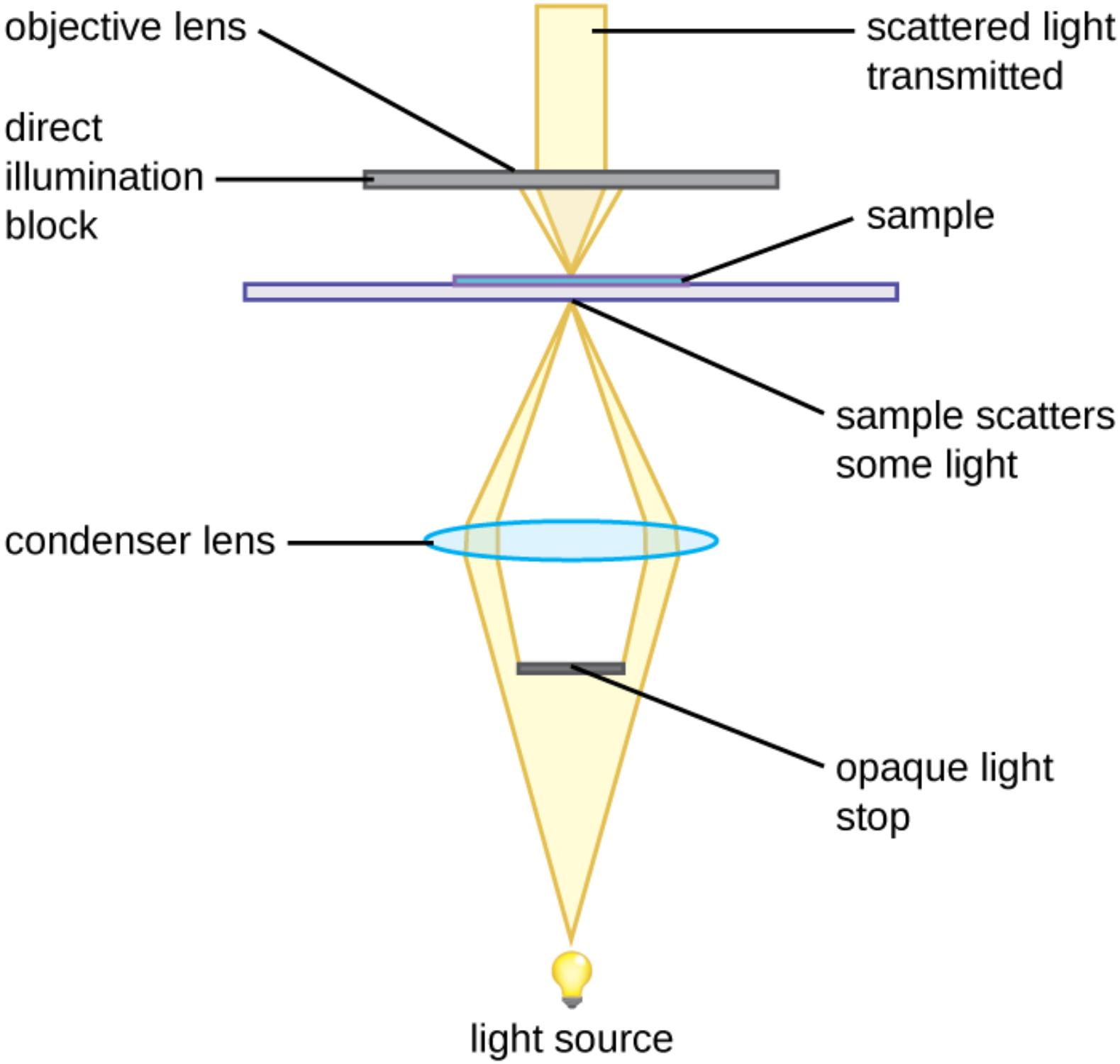

Components of the Darkfield System
Light source: This is the origin of the illumination, typically a high-intensity halogen or LED bulb located at the base of the microscope. Because much of the light is blocked during the darkfield process, the source must be significantly brighter than what is required for standard microscopy to ensure the specimen is visible.
Opaque light stop: Located below the condenser lens, this opaque disk blocks the central rays of light traveling from the source. Its primary function is to prevent direct light from entering the objective lens, creating a hollow cone of light that illuminates the specimen only from oblique angles.
Condenser lens: This optical component gathers the light rays that pass around the edges of the opaque light stop and focuses them toward the specimen. It directs the light in a hollow cone shape so that the rays strike the sample at a steep, oblique angle rather than passing directly through it.
Sample: The specimen acts as the subject of the observation, placed on a glass slide within the path of the hollow light cone. In a medical context, this sample often consists of live biological fluids, bacteria, or cells that are too transparent to be seen clearly without staining.
Sample scatters some light: When the oblique light rays hit the specimen, the physical structures within the sample interact with the light through reflection, refraction, and diffraction. This scattering effect changes the direction of the light rays, diverting them upward into the objective lens, which allows the object to become visible.
Direct illumination block: This label illustrates the path of the hollow cone of light effectively missing the objective lens aperture in the absence of a sample. The configuration ensures that unscattered light continues past the lens, maintaining a dark background unless an object interacts with the beam.
Objective lens: This magnifying lens is positioned above the sample and is responsible for collecting only the light that has been scattered or reflected by the specimen. Because direct light does not enter this lens, the only photons it gathers are those revealing the details of the sample’s structure.
Scattered light transmitted: This represents the final column of light that travels up through the microscope body to the eyepiece or camera sensor. This transmitted light forms the visual image, presenting the bright, scattered details of the specimen against a black field of view.
The Mechanism and Utility of Darkfield Illumination
Darkfield microscopy operates on a principle similar to seeing dust motes floating in a sunbeam within a dark room. In standard brightfield microscopy, light passes directly through the specimen, which can wash out details in transparent or colorless organisms. However, the darkfield technique modifies the light path to exclude unscattered beams from the image plane. By inserting an opaque stop, the microscope creates a hollow cone of illumination. The numerical aperture of the condenser must be higher than that of the objective lens to ensure that direct light rays do not enter the objective, resulting in a black background.
When a specimen is placed on the stage, its internal structures and edges scatter the oblique light. This phenomenon, known as refraction and reflection, directs light into the objective lens. The result is a high-contrast image where the organism glows brilliantly against a void-like background. This capability is particularly vital in clinical settings for examining live specimens that might be killed or distorted by the staining processes required for other microscopy methods. It allows clinicians to observe motility (movement) and shape without chemical interference.
In medical diagnostics, the most prominent application of darkfield microscopy is the identification of spirochetes, specifically Treponema pallidum, the bacterium responsible for syphilis. Because these bacteria are extremely thin and do not stain well with standard Gram stains, they are nearly invisible under brightfield scopes. Under darkfield illumination, however, their characteristic corkscrew shape and motility are instantly recognizable. This technique is also used for analyzing urine sediment and observing live blood cells to detect abnormalities in shape or flow.
Key advantages of this optical system include:
- Visualization of Live Specimens: Allows for the observation of biological activity, such as bacterial motility or cell division, in real-time.
- High Contrast: Provides excellent resolution for edges and boundaries of transparent specimens without the need for artifacts introduced by staining.
- Minimal Sample Preparation: Samples can be viewed immediately with simple wet mounts, speeding up certain diagnostic procedures.
Conclusion
Darkfield microscopy remains a fundamental tool in the arsenal of medical diagnostics and biological research. By ingeniously manipulating the path of light to utilize scattering rather than direct transmission, it unveils the invisible world of transparent organisms. Whether used for identifying spirochetes in a clinical laboratory or analyzing delicate aquatic microorganisms in research, the technique provides clarity where standard illumination fails. Its ability to produce high-contrast images of live, unstained samples ensures its continued relevance alongside more modern digital imaging technologies.
