Autosomal Recessive Inheritance: Understanding Genetic Transmission from Carrier Parents

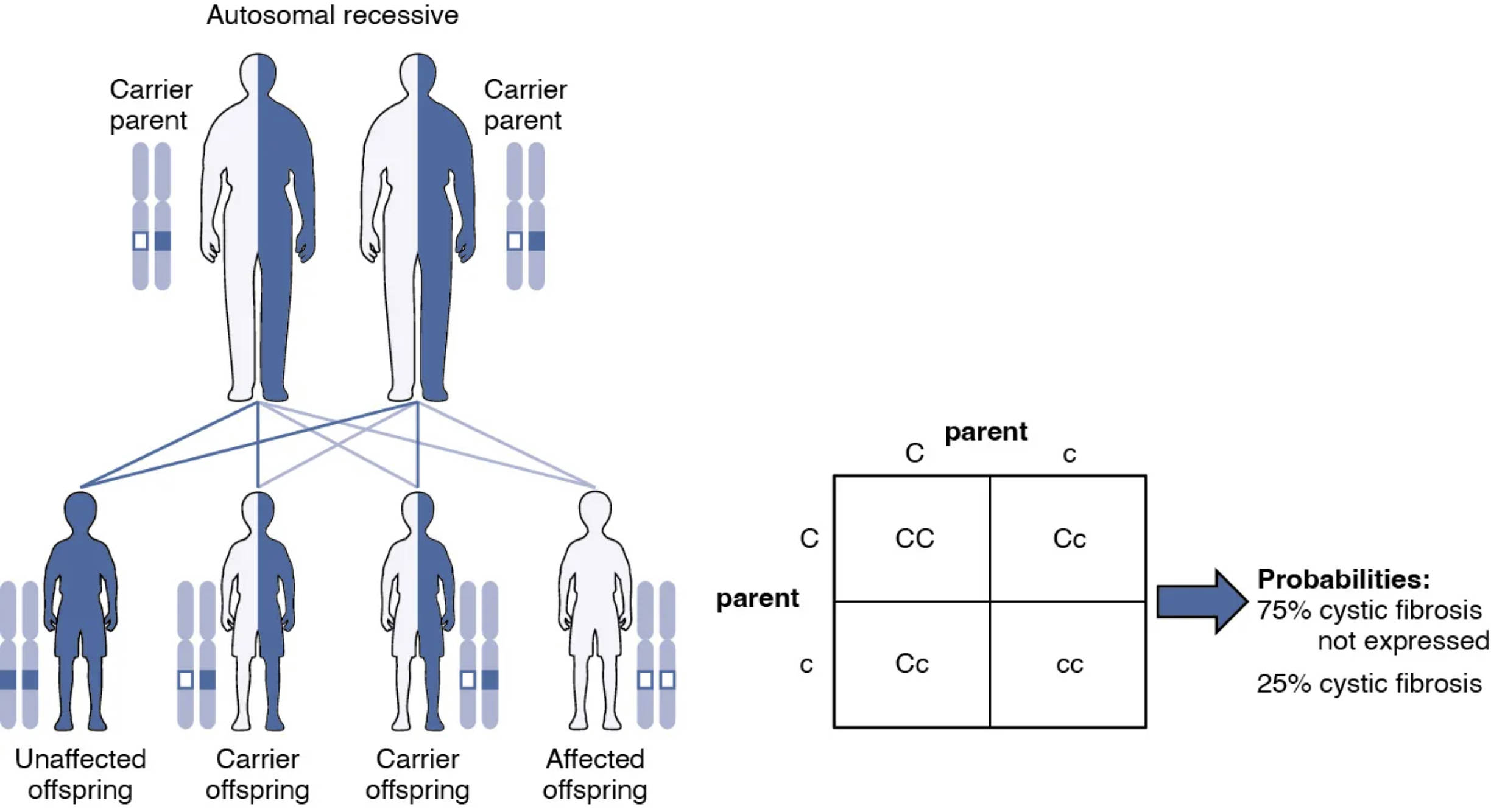

This diagram clearly illustrates the inheritance pattern of an autosomal recessive disorder, a crucial concept in human genetics. It depicts the scenario where two carrier parents, each unknowingly carrying one copy of a recessive disease-causing allele, have offspring. Using a combination of a pedigree-like chart and a Punnett square, the image visually explains the probabilities of their children being unaffected, carriers, or affected by the disorder, exemplified by conditions like cystic fibrosis. This understanding is fundamental for genetic counseling and risk assessment.

Autosomal recessive: This label defines the mode of inheritance, indicating that the gene responsible for the disorder is located on an autosome (non-sex chromosome) and that two copies of the altered gene (one from each parent) are required for the condition to manifest.

Carrier parent: These represent individuals who carry one copy of the recessive allele for the disorder but do not express the disease themselves. They are heterozygous, possessing both a normal dominant allele and a recessive disease allele. Their chromosomes are depicted with one half blue (normal) and one half white (recessive allele), symbolizing their carrier status.

Unaffected offspring: This child inherited two normal dominant alleles (CC) and is completely unaffected by the disorder, neither expressing the disease nor carrying the recessive allele. Their chromosomes are entirely blue, indicating two normal copies.

Carrier offspring: These children inherited one normal dominant allele (C) and one recessive disease allele (c). Like their parents, they are carriers, phenotypically unaffected but capable of passing the recessive allele to their own offspring. Their chromosomes show the same blue and white split as the parents.

Affected offspring: This child inherited two recessive disease alleles (cc), one from each carrier parent. As a result, they express the autosomal recessive disorder. Their chromosomes are entirely white, symbolizing two copies of the recessive allele.

Punnett square: This genetic tool graphically represents the possible combinations of alleles from two parents. The alleles from one carrier parent (C, c) are placed along the top, and the alleles from the other carrier parent (C, c) are placed along the side. Each internal box shows a potential genotype for the offspring.

Probabilities: 75% cystic fibrosis not expressed, 25% cystic fibrosis: This section summarizes the expected outcomes. It indicates that 75% of offspring will not express cystic fibrosis (genotypes CC or Cc), while 25% of offspring will inherit two recessive alleles (cc) and develop cystic fibrosis. This reflects the classic 3:1 phenotypic ratio for a cross between two heterozygotes.

The diagram clearly illustrates the complexities of autosomal recessive inheritance, a pattern where a genetic disorder only manifests if an individual inherits two copies of a specific mutated gene, one from each parent. The visual representation effectively conveys a scenario involving two “carrier parents,” individuals who each possess one normal, dominant allele and one recessive, disease-causing allele. While these parents are phenotypically unaffected themselves, their genetic makeup carries the potential to transmit the disorder to their offspring. This understanding is particularly critical for conditions like cystic fibrosis, a prevalent example of an autosomal recessive disorder.

The left side of the diagram uses a family tree-like structure to show the transmission of these alleles. Each carrier parent is depicted with chromosomes showing a mix of normal (blue) and affected (white) segments, symbolizing their heterozygous state (Cc). When these two carrier parents reproduce, the random segregation of alleles during gamete formation leads to diverse outcomes in their children. The four possible outcomes for their offspring are: an unaffected child (CC) who does not carry the gene, two carrier children (Cc) who are phenotypically healthy but can pass the gene on, and one affected child (cc) who inherits two copies of the recessive allele and thus expresses the disease.

Complementing this, the Punnett square on the right side provides a quantitative breakdown of these probabilities. It demonstrates that when two carrier parents (Cc x Cc) cross, there is a 25% chance of their child inheriting two normal alleles (CC), resulting in an unaffected, non-carrier individual. There is a 50% chance of their child inheriting one normal and one recessive allele (Cc), making them a carrier like their parents. Crucially, there is a 25% chance of their child inheriting two recessive alleles (cc), leading to the expression of the autosomal recessive disorder. This classic 1:2:1 genotypic ratio (CC:Cc:cc) and 3:1 phenotypic ratio (unaffected:affected) are fundamental to understanding the risks associated with autosomal recessive conditions.

Cystic fibrosis (CF) serves as an excellent case study for autosomal recessive inheritance. It is caused by mutations in the CFTR (Cystic Fibrosis Transmembrane Conductance Regulator) gene, located on chromosome 7. The CFTR gene provides instructions for making a protein that functions as a chloride channel, crucial for the balance of salt and water on many body surfaces, including the lungs and pancreas. When an individual inherits two mutated copies of the CFTR gene, the CFTR protein either does not function properly or is absent, leading to the production of thick, sticky mucus. This abnormal mucus obstructs airways in the lungs, making breathing difficult and increasing susceptibility to bacterial infections, and also blocks ducts in the pancreas, impairing digestion.

The diagram’s portrayal of two carrier parents (Cc) is central to understanding CF transmission. Each carrier possesses one normal CFTR allele and one mutated CFTR allele. They do not experience CF symptoms because the single functional CFTR allele is usually sufficient to produce enough normal protein. However, if two carriers have a child, as depicted, each child faces a 25% risk of inheriting two mutated alleles and developing CF. This scenario highlights the importance of carrier screening, particularly in populations with a higher incidence of CF, to identify couples at risk before or during pregnancy. Genetic counseling is paramount for such families, offering information about inheritance patterns, diagnostic options, and reproductive choices.

The management of CF has advanced significantly, transitioning from a fatal childhood disease to a chronic condition with improving life expectancy. Treatment focuses on clearing mucus from the lungs, preventing and treating infections, and providing nutritional support to counter digestive issues. The diagram, by visually explaining the probabilistic nature of autosomal recessive inheritance, provides a foundational understanding for healthcare professionals and affected families alike. It underscores how seemingly “hidden” genetic traits in carriers can lead to significant health challenges in subsequent generations, emphasizing the intricate and sometimes unpredictable dance of genetic inheritance.
